Number of Channels: | 4 Channels |
Maximum Output Current: | 0-75mA |
Operating Frequency: | 2000Hz & 4000 Hz |
Base: | 0 -150 Hz |
Spectrum: | 0 -150 Hz |
Modes: | 2 pole TENS/4 pole VECTOR/4 Pole |
Sweep Patterns: | Triangle/Square/Trapezoidal |

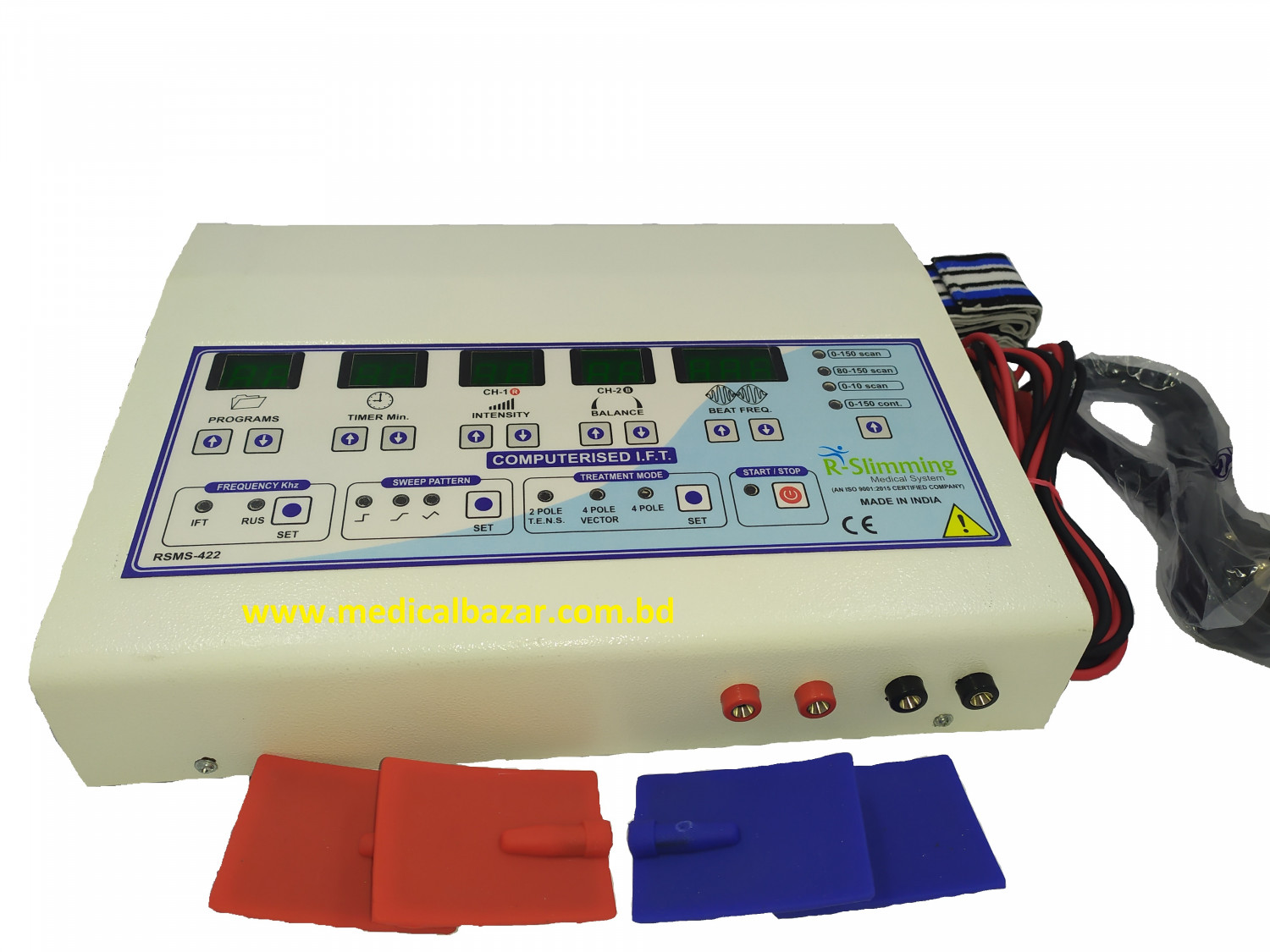

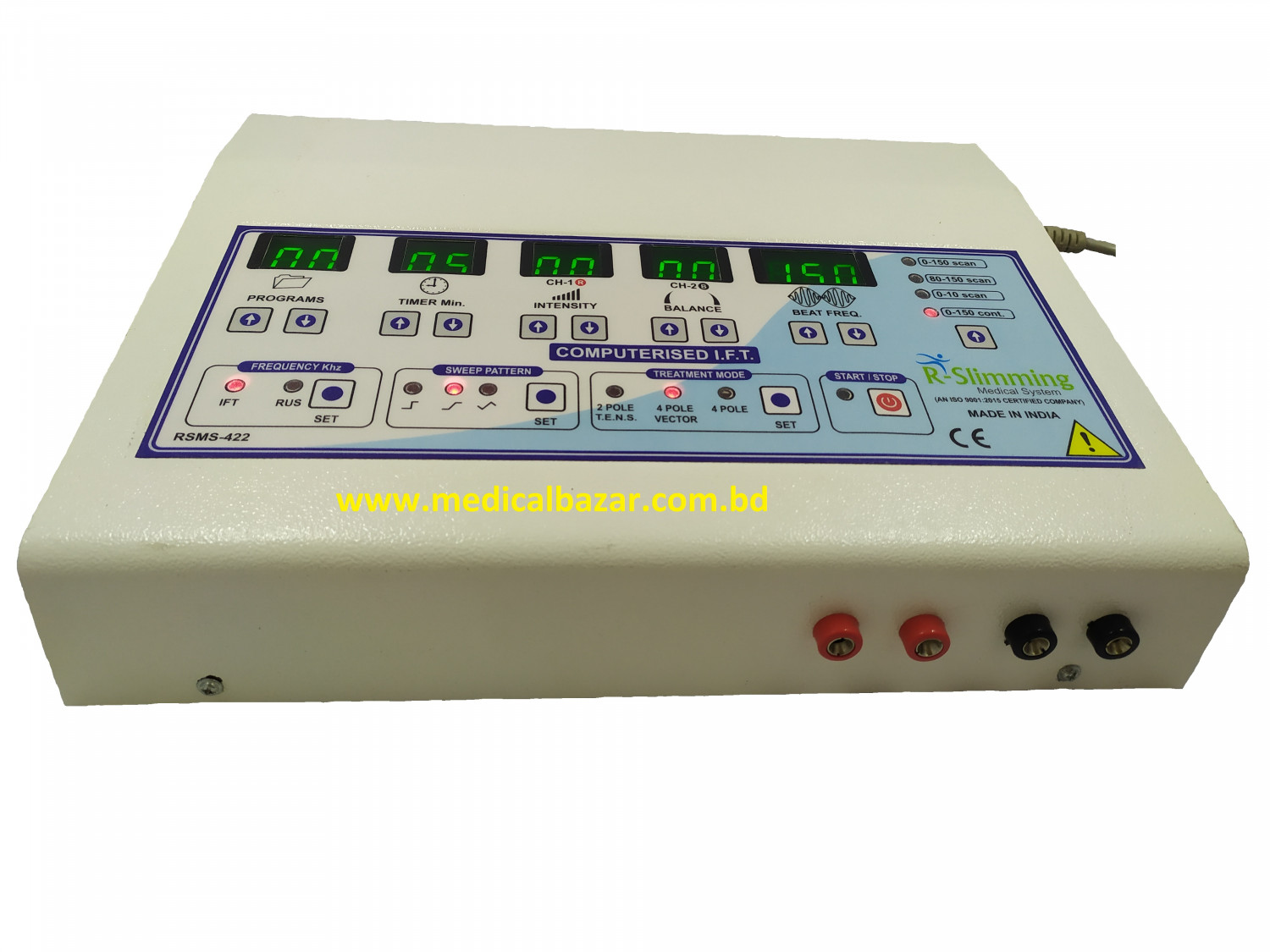

The RSMS-422 is an advanced and trend setting interferential therapy equipment from R-Slimming Medical System. During the development simplicity of operation and patient safety were the principle consideration. All the setting parameters are clearly displayed on a LCD screen. The corresponding parameters are easily set with Soft touch keys. Digital intensity control helps for smooth and error free operations.
SPECIFICATIONS:
Carrier frequency – 2,4,6,8, 10KHz
Base frequency – 1 -150 Hz (1 Hz step)
Sweep frequency – 0-150 Hz (1 Hz step)
Programs – 1 /1S 1/5, 1/5S 6/6S
Therapy Modes – 2 pole TENS/4 pole VECTOR/4 Pole
Output current – 0 – 80 mA
Timer – 0 – 99 mins
TECHNICAL DATA
Mains voltage – 90 -270 V / 50 or 60 Hz
Safety Class – Class I,
Type BF (IEC 60601 -1)
Dimensions – L x B x H – 23 x 20 x 8 cms
Weight – 1.6 Kgs
FEATURES
Cable and electrode sensing mode
Light weight and compact design
Easy to operate
DSP Based circuitry,
Outputs are in 100% accuracy
Large LCD display
International standards and specifications
Advanced patient safety system
Built in rechargeable battery (optional)
Separate intensity controls in 2pole mode

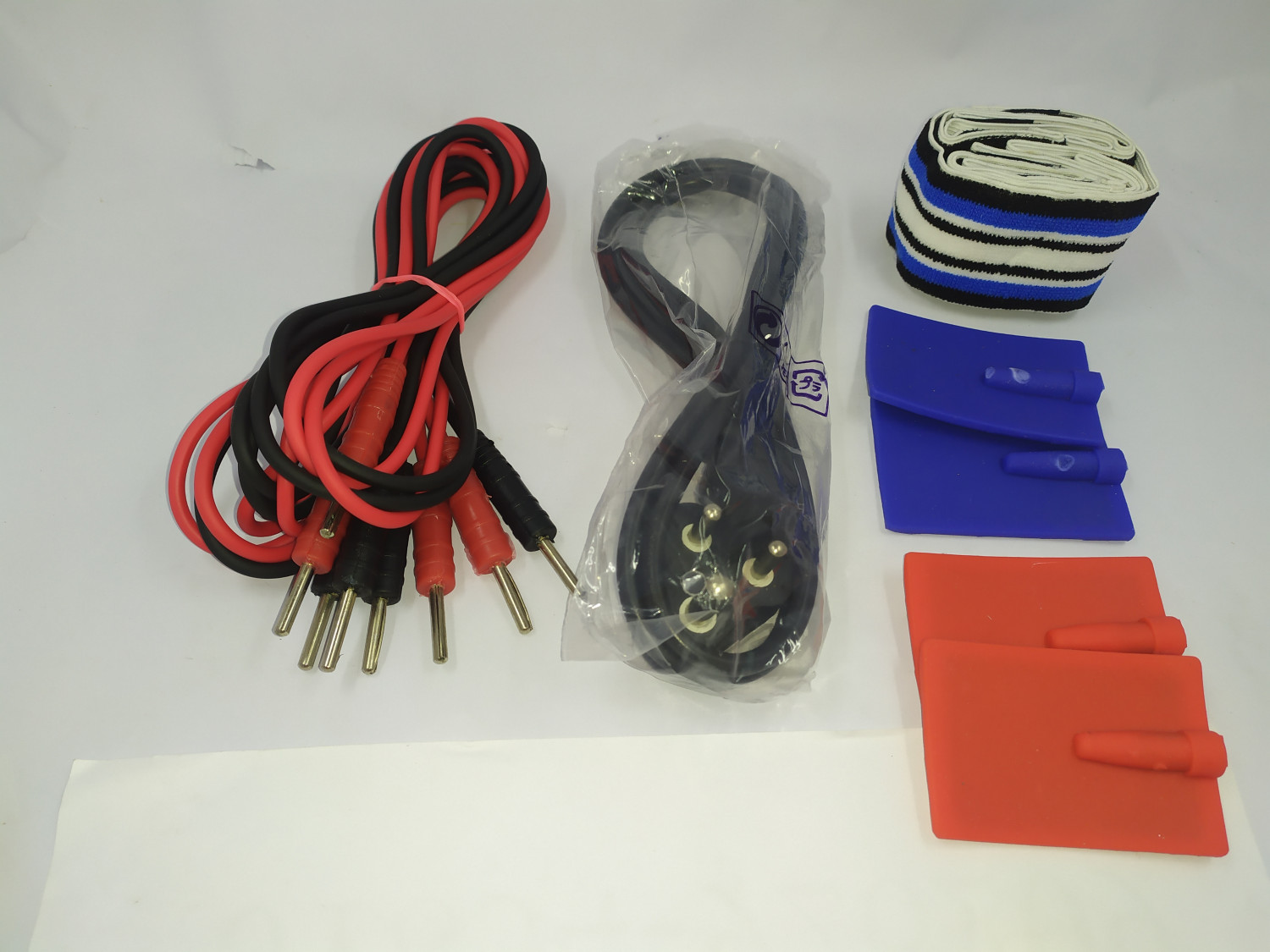

Accessories:
