Shortwave Diathermy (SWD) 3320

• Origin: Made in India
• Brand: R-Slimming Medical System
• Warranty: 1 year with lifetime service warranty
• Output Frequency: 27.12 MHz
• Mode: Continuous and Pulsed
• Output Power: 200 W Average Power with Digital Display
• Output Mode: Continues & Pulsed
• Pulse Frequency: 800 Hz, 600 Hz, and 400 Hz
• Duty Cycle: 0 – 100%.
• Treatment Duration: 1 – 60 minutes in 1 minute increments (End of treatment time automatically
  cut off)
• Tuning: Automatic
• Valve: One SWD Radio-frequency valve

Description

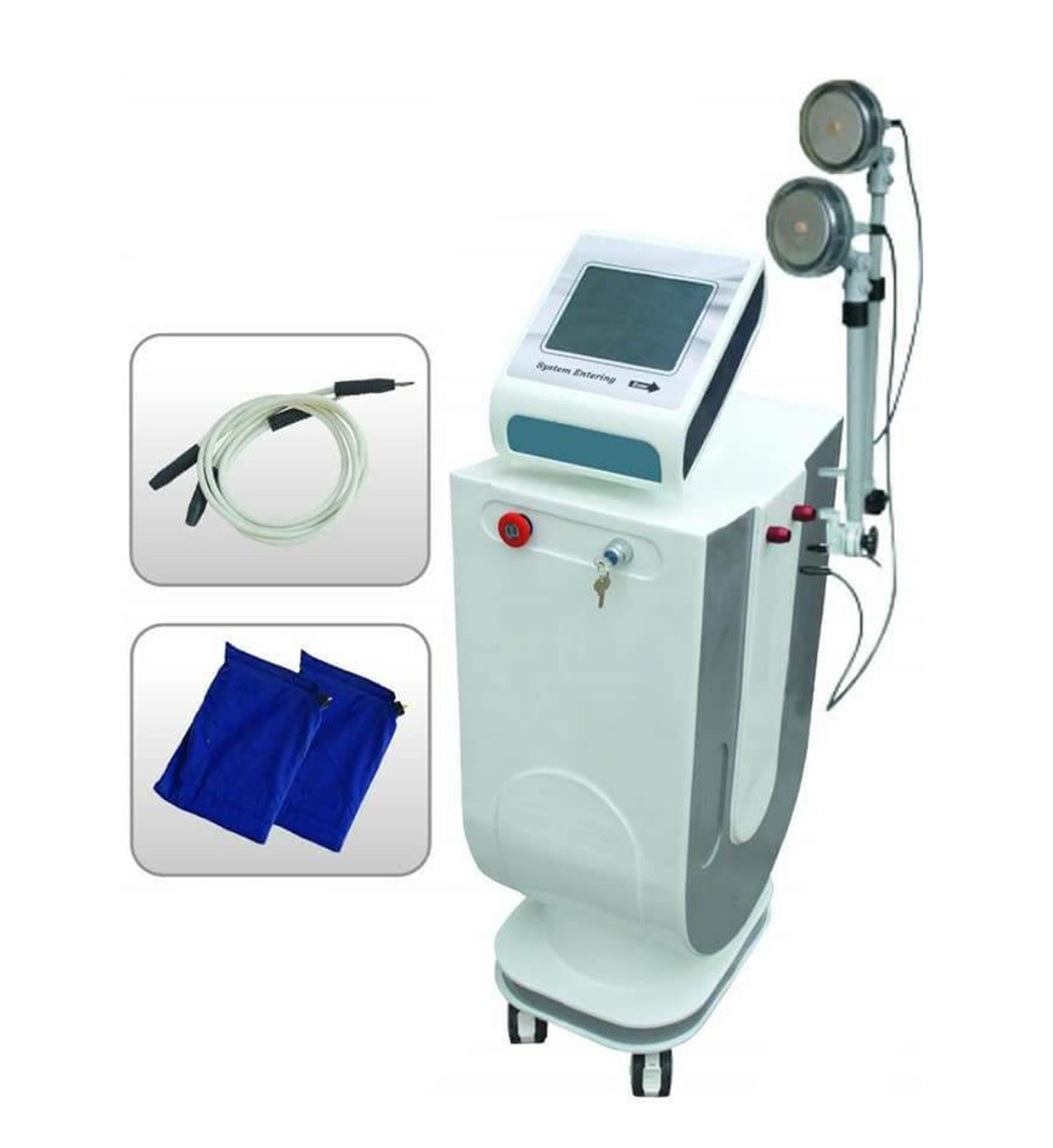

RSMS 3320 is an advanced valve technology based on Continuous and Pulsed shortwave diathermy Machine. This machine has most advanced features to facilitate quick and effective treatment of the patient. RSMS 3320 is heavy duty shortwave diathermy equipment can be used in hospitals and big clinics. It is mounted in castors to move from place to place. It has plastic & metal molded multi-position arms set for setting the treatment place
without disturbing the patient. Digital timer for setting the treatment time.

Features

• 1000W pulsed & 500W continuous maximum power output
• Continuous and pulsed shortwave from one unit
• 8 INCH TOUCH SCREEN display with clear operational information On-screen simplicity for quick set-up
• 32 programmable functions
• Treatment protocols, based on clinically proven results
• Distinctive ergonomic design with lockable castors
• Body is made by Fiber sheet
• 4 wheel bottom of this machine
• It has one SWD bulb, it is a internal part

Other Specification:

Operating Voltage: 180 – 240 V ~/ 50 Hz .
Power Consumption: 200 Watts
Size: 120 x 50 x 40cm. (Approx)
Weight: Approx 48 Kgs
4 wheel bottom of the machine
Body is made by fiber Sheet
Origin: R-Slimming Medical System, India
1 years warranty

Standard Accessories:

Flexible Pads with an Intermediate Felt Layer.
Indicator Discharge Tube.
Disc Electrodes with 360 Degrees Adjustable Arms.
SWD User Manual.
Disc Cables.
